VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Pinecrest, FL | Sightline Windows & Doors Pinecrest

The VLX 100 Bifold / Folding Door is an accordion-style aluminum system that turns entire walls into open-air passages. Homeowners in Pinecrest choose it for poolside cabanas, rear entertainment walls, and master suite transitions that erase the boundary between interior comfort and South Florida’s outdoor lifestyle. Sightline Windows & Doors Pinecrest installs this ViewLux product as an authorized partner, which means your project carries full manufacturer backing plus our local installation warranty. We’ve measured, fitted, and sealed these systems across Pinecrest homes from Snapper Creek to the Red Road corridor since 2018. The VLX 100 handles spans up to 20 feet wide and stacks panels cleanly to one side, leaving sightlines unobstructed when open and a thermally broken barrier when closed. Call (786) 442-3200 to schedule your free on-site measurement and written quote.

Call (786) 442-3200

Product Overview - VLX 100 Bifold / Folding Door

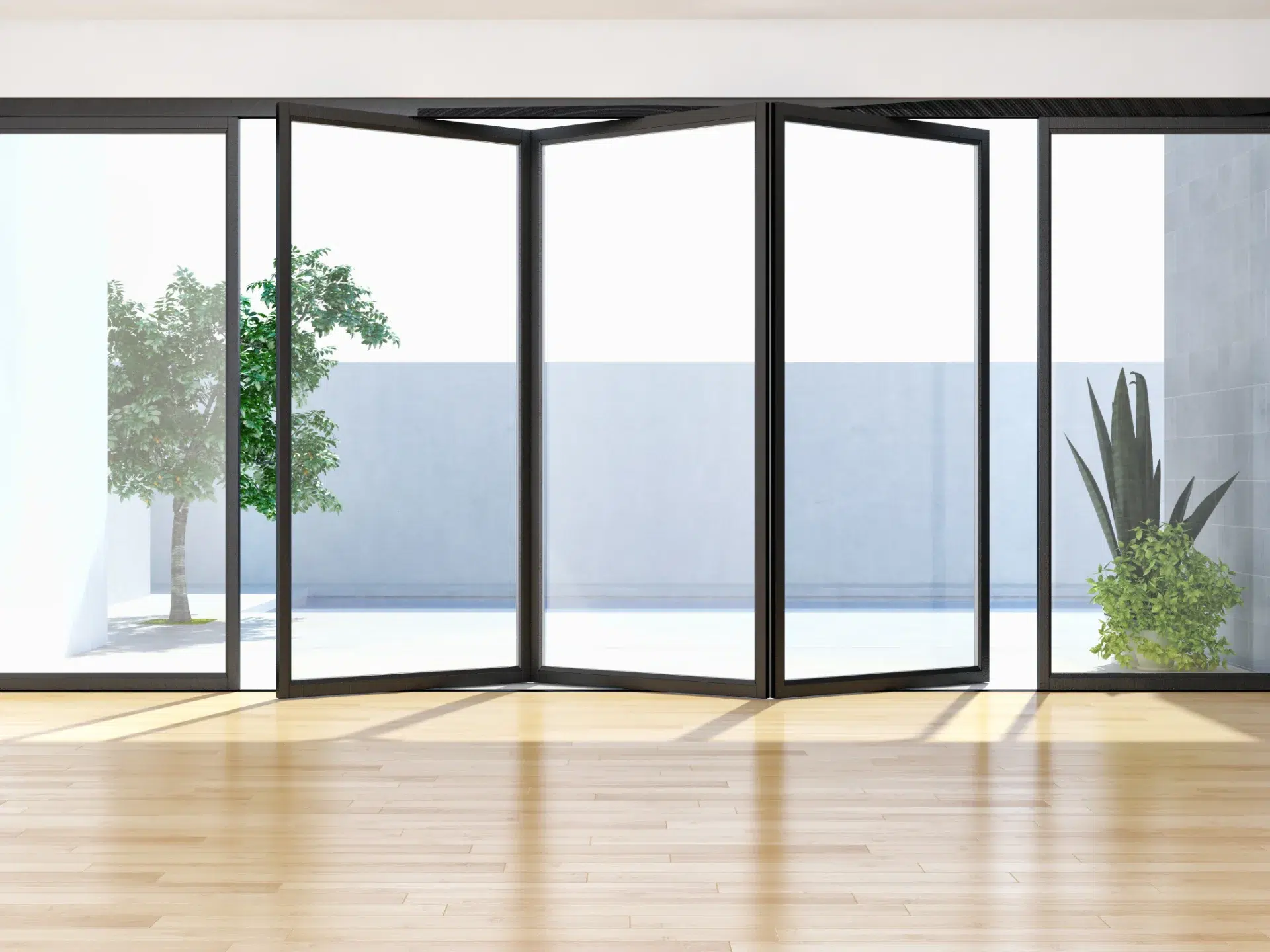

The VLX 100 was engineered for one purpose: making the wall disappear without surrendering the structural integrity or climate control of your home. Its accordion-style aluminum frame folds in sequence, each panel riding a precision track that guides movement without drift or binding. When fully retracted, the panels nest in a compact stack that projects minimally into your room or onto your terrace. Closed, the system presents a continuous glass plane framed by slim 2.56-inch profiles that read as deliberate architectural lines rather than bulky hardware.

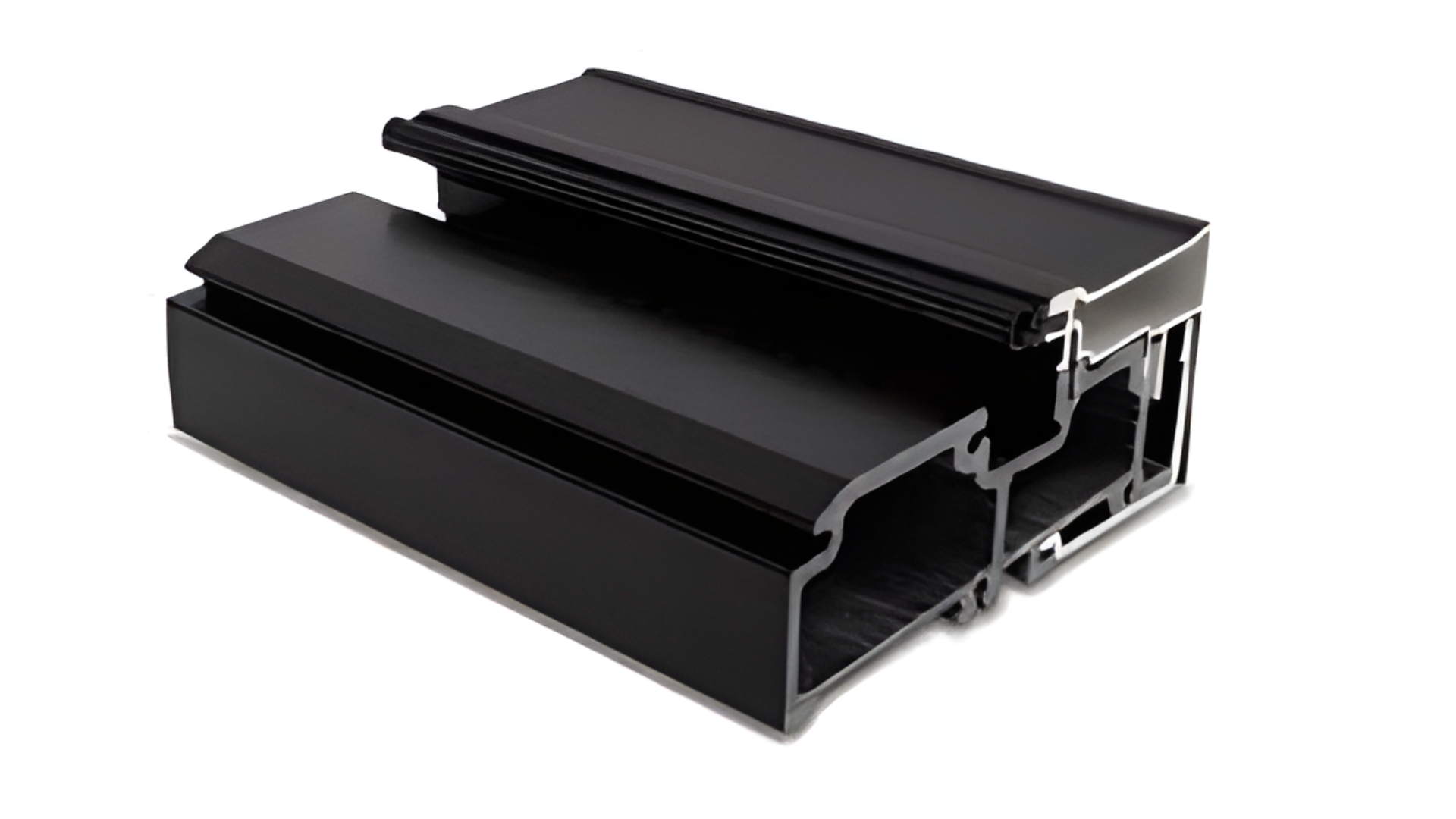

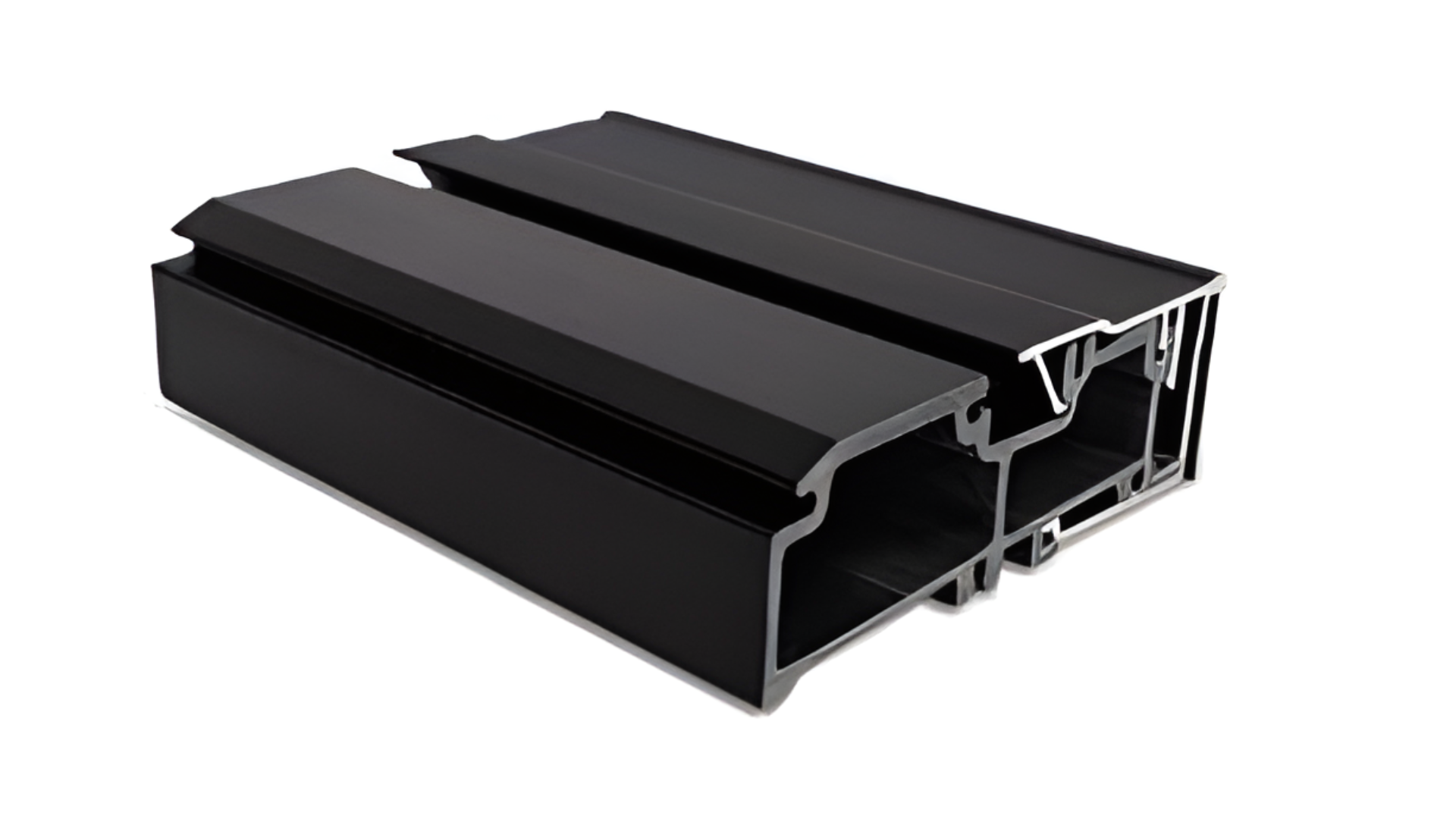

Aluminum construction with a 0.098-inch wall thickness gives the VLX 100 torsional rigidity that thinner systems lack. Pinecrest’s afternoon thunderstorms and salt-laden air punish lesser frames; this wall thickness resists the flex that eventually misaligns tracks and strains hardware. The thermal break separating interior and exterior aluminum surfaces isn’t an afterthought, it’s continuous through the profile, which matters when your air conditioning runs eight months a year.

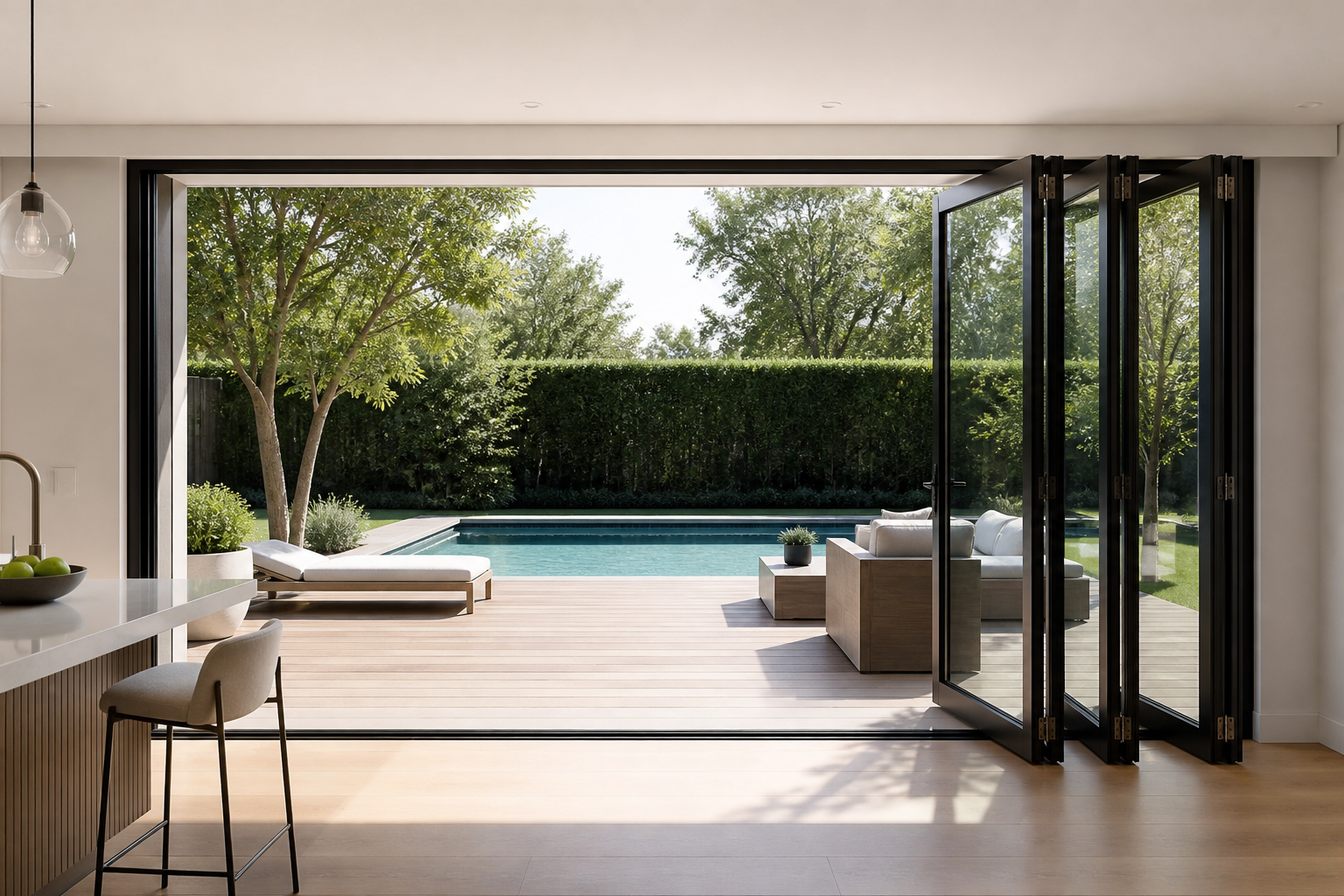

Architecturally, the VLX 100 suits both the mid-century modern homes near Pinecrest Gardens and the contemporary builds going up along Old Cutler Road. The 20-foot maximum span accommodates openings that would otherwise require steel beams and fixed sidelights. For homeowners who entertain, the wall-to-wall opening transforms a kitchen or great room into a covered loggia without the threshold trip hazard of sliding systems. For pool houses and guest cottages, it’s the difference between a closed room and an integrated pavilion.

ViewLux manufactures the VLX 100; Sightline Windows & Doors Pinecrest installs it. That distinction matters because bifold performance lives or dies at the interface between product and structure. We’ve replaced too many poorly installed systems where the hardware was sound but the frame was shimmed crooked, or the perimeter was caulked instead of foamed, or the sill drained toward the house. Our authorized-partner status means we follow ViewLux specifications precisely, preserving your warranty and your peace of mind.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency
The VLX 100’s thermal break creates a thermal and structural separation between interior and exterior aluminum surfaces. NFRC-rated performance gives you verified U-factor and SHGC numbers for permit applications and energy modeling. In Pinecrest’s climate, this means your conditioned air stays inside during August afternoons, and the aluminum frame won’t sweat like unbroken profiles do.

Acoustic Performance
Multi-point locking hardware compresses seals uniformly around the frame perimeter, creating an acoustic barrier that single-point latches cannot match. Tempered or laminated glass options add mass for additional sound damping. Homes near US-1 or the Palmetto Expressway benefit measurably, and the difference is noticeable when panels are closed against evening traffic.

Airtightness & Weather Seal
AAMA 2400/2410 installation standards govern how we set the frame, shim, and fasten to maintain designed clearances. Compression seals at panel meeting stiles and frame perimeters are sized to the specification, not guessed. The result is measurable airtightness that prevents drafts, dust infiltration, and the pressure imbalances that strain HVAC systems.

Waterproofing
AAMA 812 low-expansion foam sealant fills perimeter joints between frame and rough opening, creating a monolithic seal that flexible backer rod and caulk alone cannot achieve. Our sills are set with positive drainage to the exterior, and we verify slope with a level before final fastening. In Pinecrest’s driving rains, this detail separates dry interiors from callback repairs.

Wind Resistance
The VLX 100 is wind-load rated for South Florida requirements. The 0.098-inch wall thickness and reinforced corner construction resist the racking forces that deform thinner frames. Impact-resistant laminated glass is available for homes in wind-borne debris regions. We verify local code applicability during your estimate and specify accordingly.

Security & Hardware
Multi-point locking engages at several locations along the panel edge, not just a single latch. Stainless steel rollers and hinges resist corrosion in Pinecrest’s humid, salt-air environment. Hardware finishes match or complement frame colors. The retractable screen option includes its own latch mechanism; when deployed, it adds a secondary barrier without compromising the clean sightlines that sold you on bifolds.

Color & Glass Options

Six finishes let the VLX 100 read as architectural statement or quiet background, depending on your home’s character. Premium Black and Pure White suit the minimalist contemporary builds we’re seeing more of in Pinecrest, where window walls are meant to read as voids rather than frames. Anodized Silver carries the honest materiality that complements mid-century and industrial aesthetics without pretending to be something else. Bronze and Champagne warm the metal tone for traditional Mediterranean and Spanish Colonial homes where black would read too harsh against stucco or coral stone. Teak Wood grain finish gives you the warmth of wood appearance with aluminum’s maintenance freedom, a practical choice for homes near canopy roads where real wood requires annual attention.

Glass selection shapes daily experience more than frame color. Clear glass maximizes visible light transmission and views. Low-E coating reflects infrared heat while passing visible light, our standard recommendation for west-facing walls in Pinecrest. Tempered glass is code-required for large glazed areas and provides the safety of fracture into small granules rather than shards. Laminated glass adds the polyvinyl interlayer that holds fragments in place, providing impact resistance for high-velocity debris zones and acoustic damping as secondary benefits. Gray Tint and Black Tint reduce glare and solar heat gain for walls that catch direct sun; gray preserves color rendering while black creates more dramatic opacity from the exterior.

The retractable screen option deploys when you want ventilation without insects, vanishes when you don’t. In Pinecrest, where evening mosquito activity peaks during wet season, this matters more than many buyers initially realize.

Installation by Sightline Windows & Doors Pinecrest in Pinecrest

We install every VLX 100 according to AAMA 2400/2410 standards because deviation voids the ViewLux warranty and guarantees future problems. Our process begins with a pre-installation inspection of your rough opening: we check square, level, and plumb; measure diagonals; and identify any structural conditions that need correction before the frame arrives. This step prevents the “make it fit” compromises that plague retrofit installations.

Setting the frame is where precision pays. We shim at structural points, never stack shims into unstable towers, and fasten through the jamb into structural framing with corrosion-resistant fasteners at specified spacing. The sill sits on a bed of sealant, sloped to drain outward. Once the frame is secured and verified level, plumb, and square, we inject AAMA 812 low-expansion foam sealant into the perimeter gap. This foam expands to fill irregularities that backer rod misses, then cures to a resilient seal that moves with thermal cycling without cracking. Caulk alone, or generic expanding foam, doesn’t meet the standard and doesn’t perform over time.

Panel hanging follows ViewLux’s sequence: rollers into track, panels aligned at meeting stiles, hardware adjusted for uniform compression. We cycle the system repeatedly, checking for binding, verifying lock engagement, and confirming that the retractable screen deploys and retracts smoothly. A final water test with a calibrated spray simulates wind-driven rain; we inspect interior surfaces for any penetration.

Pinecrest’s building department requires permits for door replacements that alter opening sizes or involve impact-rated products. We pull permits, schedule inspections, and provide the documentation your closing or insurance may require. Our work is insured and bonded, and we warranty installation labor independently of the manufacturer’s product coverage.

Improper installation is the leading cause of bifold system failure: tracks that sag, panels that scrape, seals that leak, hardware that corrodes prematurely. The VLX 100 is engineered for decades of operation, but only when installed by technicians who understand why each specification exists. Sightline Windows & Doors Pinecrest has installed ViewLux systems throughout Pinecrest, from the village center to the western estate lots, and we bring that accumulated specific knowledge to your project.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?
Lead time typically runs 8-12 weeks from final measurement and deposit, depending on glass selection and finish availability. Custom sizes and impact-rated laminated glass may extend this slightly. We coordinate delivery to minimize your wait and schedule installation promptly upon arrival. Call (786) 442-3200 to check current lead times for your configuration.

Does the VLX 100 qualify for energy tax credits?
The VLX 100’s NFRC-rated thermal performance and Low-E glass options may contribute to whole-home energy efficiency improvements that qualify under federal or state programs. Tax credit eligibility depends on your total project scope, installation year, and current IRS guidance. We provide NFRC performance documentation for your tax preparer’s evaluation. Call (786) 442-3200 to discuss how our installations have helped other Pinecrest homeowners document efficiency improvements.

What warranty comes with the Bifold / Folding Door?
ViewLux provides a limited lifetime warranty on the aluminum frame and hardware, with glass coverage varying by selected option. Sightline Windows & Doors Pinecrest adds our own installation workmanship warranty. Both warranties require professional installation per manufacturer specifications; DIY or non-authorized installation voids coverage entirely. We register your warranty and provide documentation at project completion.

Can I customize the size?
The VLX 100 accommodates openings up to 20 feet wide in panel configurations from 2 to 6 panels. Within that range, we customize width and height to your rough opening in 1/8-inch increments. Very large or unusually proportioned openings may require engineering review; we identify this during your free measurement appointment. Call (786) 442-3200 to schedule measurement and discuss your specific opening.

How do I maintain aluminum frames?
Wash frames with mild soap and water twice yearly; rinse thoroughly to prevent soap residue buildup. Lubricate hinges and lock mechanisms annually with a silicone-based product, never petroleum grease which attracts dust. Clean tracks of debris that could obstruct roller movement. The anodized and painted finishes resist Pinecrest’s salt air, but prompt cleaning after severe storms extends appearance life. Avoid abrasive cleaners or pressure washers directed at seals. Call (786) 442-3200 if you notice operation changes; early adjustment prevents wear.

Get a Quote - VLX 100 Bifold / Folding Door in Pinecrest

Every VLX 100 project starts with a free on-site measurement in Pinecrest. We’ll assess your opening, discuss configuration and glass options, review finish samples, and provide a written line-item quote with no obligation. Sightline Windows & Doors Pinecrest is your local authorized ViewLux installation partner, and we stand behind every system we set. Call (786) 442-3200 or visit our Pinecrest showroom to see hardware samples and start your project.
