VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in Pinecrest, FL | Sightline Windows & Doors Pinecrest

The VLX 150 Heavy-Duty Sliding Door is the aluminum slider Pinecrest homeowners and builders specify when the opening is too wide for a standard unit and the traffic is too heavy for lightweight hardware. We’re talking about back walls that open onto pool decks, outdoor kitchens, and covered lanais across Pinecrest’s ranch-style homes and modern rebuilds. Sightline Windows & Doors Pinecrest is an authorized installation partner for ViewLux, which means every VLX 150 we sell carries the manufacturer’s full warranty and is installed to the exact standards their engineering team requires. If you’re planning a new build off Red Road or replacing aging sliders in a Pinecrest Village home, call us at (786) 442-3200 to schedule your free on-site measurement and written estimate.

Call (786) 442-3200

Product Overview - VLX 150 Heavy-Duty Sliding Door

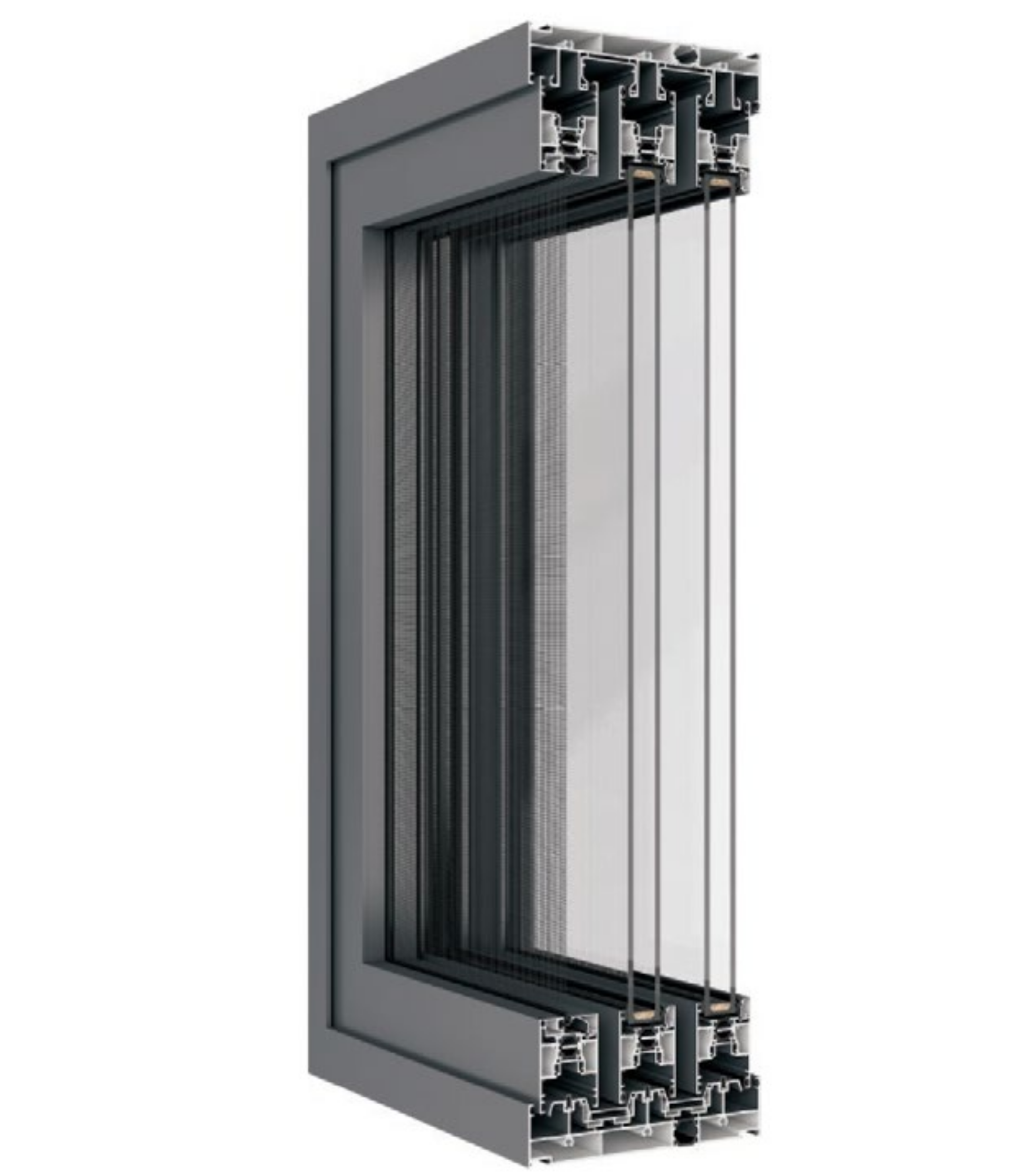

The VLX 150 was engineered around a single question: what happens when a sliding door needs to work hard for twenty years without complaining? The answer is a strength-focused large-span aluminum slider built around robust stainless hardware and available in multi-track configurations that let you customize the operation to the room.

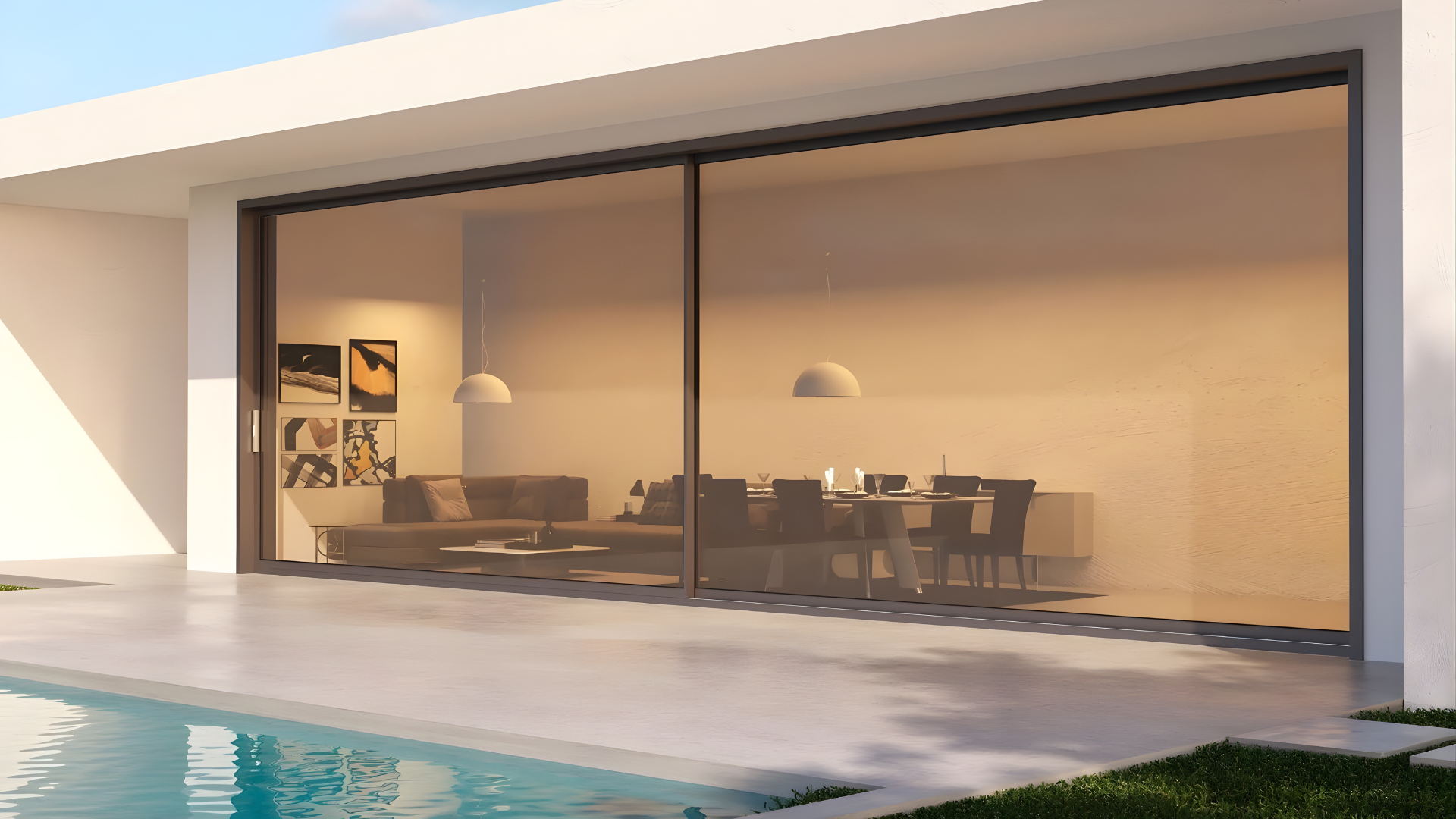

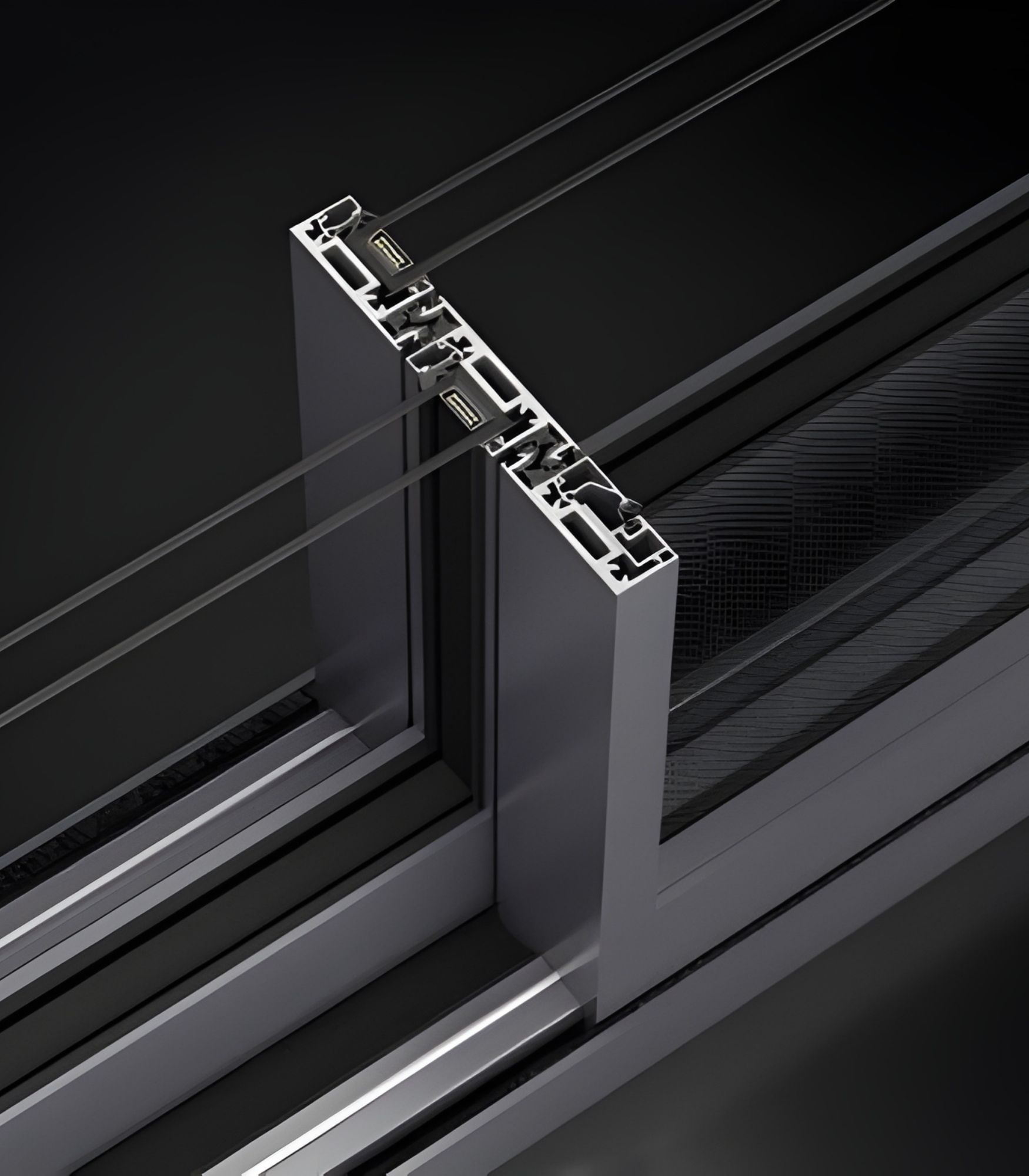

Where this door fits architecturally is simple: anywhere a wall of glass needs to move. In Pinecrest, we’re installing VLX 150 units in new construction off Ludlam Drive, whole-home renovations in the Pinecrest by-the-Sea area, and additions where the owner wants to erase the boundary between living space and landscaped backyard. The 0.118″ wall thickness gives the frame the backbone to stay square across widths that would flex a lighter profile. The 2.95″ profile width keeps the sightlines relatively clean, so you’re not staring at bulky framing when the door is closed.

Buyers choose this series for three reasons. First, the stainless hardware doesn’t corrode in South Florida’s salt air, which matters when your back door faces a pool that gets chlorinated weekly. Second, the multi-track options let you configure two, three, or four panels depending on whether you want a single sliding panel, a center-opening pair, or a full wall of moving glass. Third, the maximum 24-foot span means we can cover openings that would otherwise require custom structural steel and fixed sidelights. The aluminum construction is thermally broken, so you get the structural honesty of metal without the thermal honesty of metal, if you follow.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

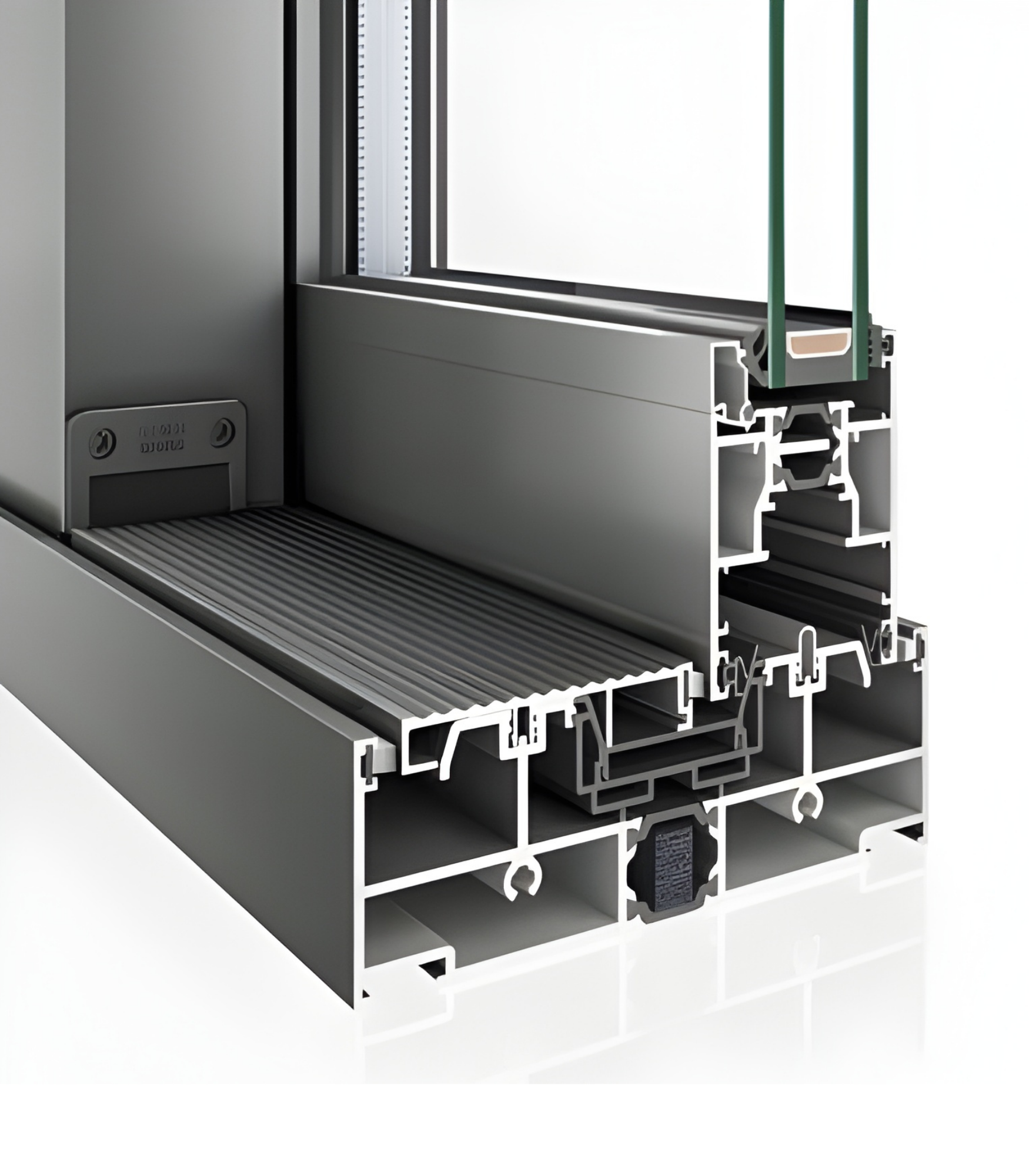

The VLX 150 uses thermal break technology to separate the interior and exterior aluminum surfaces, cutting conductive heat transfer. NFRC-rated energy performance means the numbers are third-party verified, not marketing claims. In Pinecrest, where summer cooling loads run eleven months a year, that thermal break keeps conditioned air inside and attic heat outside.

Acoustic Performance

Multi-chamber frame construction and dual-seal gasketing reduce exterior noise transmission. For homes near US-1 or Kendall Drive, the combination of laminated glass and proper installation can drop perceived traffic noise significantly. We specify acoustic-rated configurations during our on-site consultation if noise is a priority.

Airtightness & Weather Seal

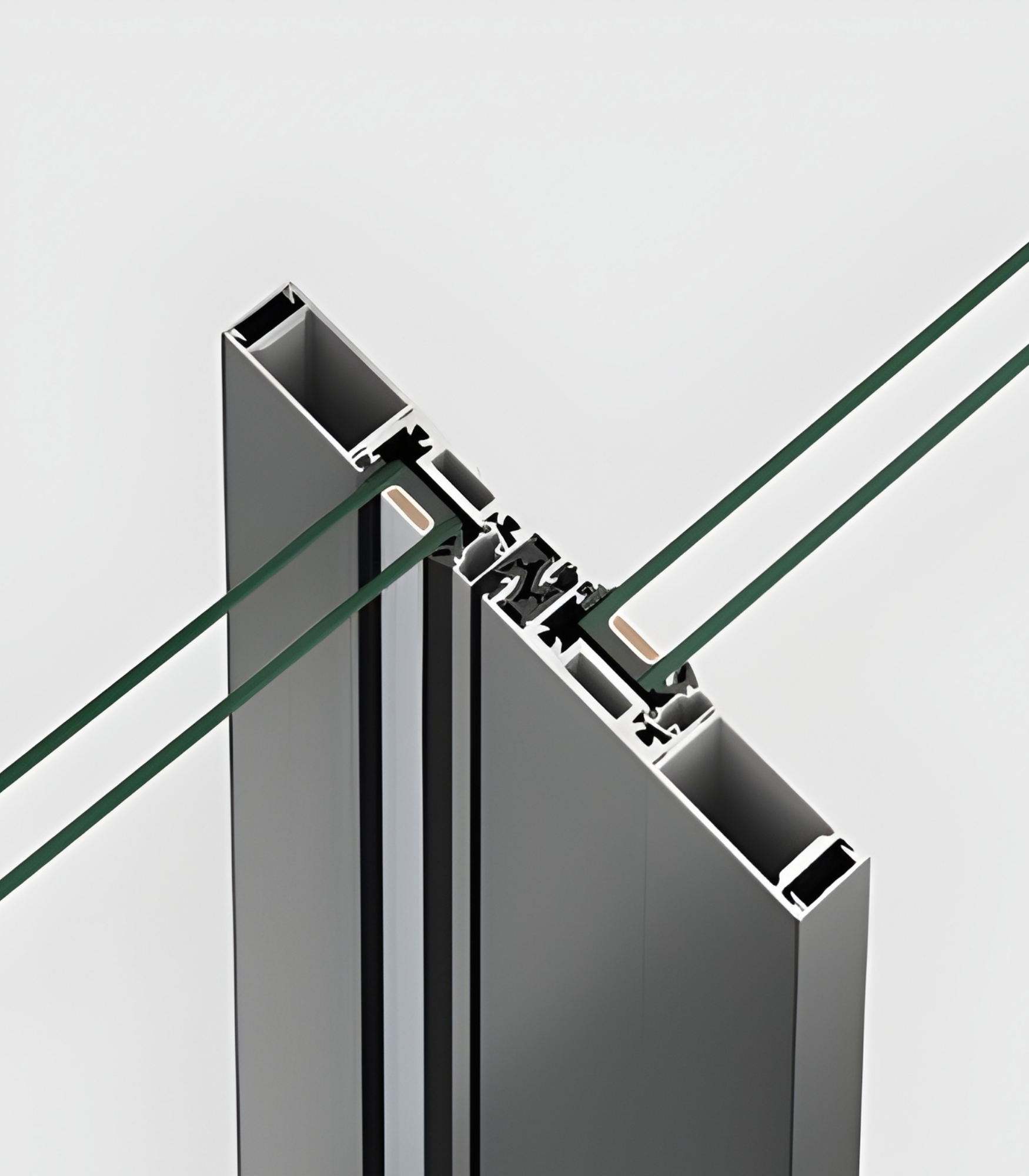

Compression seals at all meeting stiles and a continuous bulb seal at the frame perimeter stop air infiltration. The AAMA 812 low-expansion foam sealant we apply at installation fills every irregularity between frame and rough opening. No gaps, no whistling, no dust trails on tile floors after a front blows through.

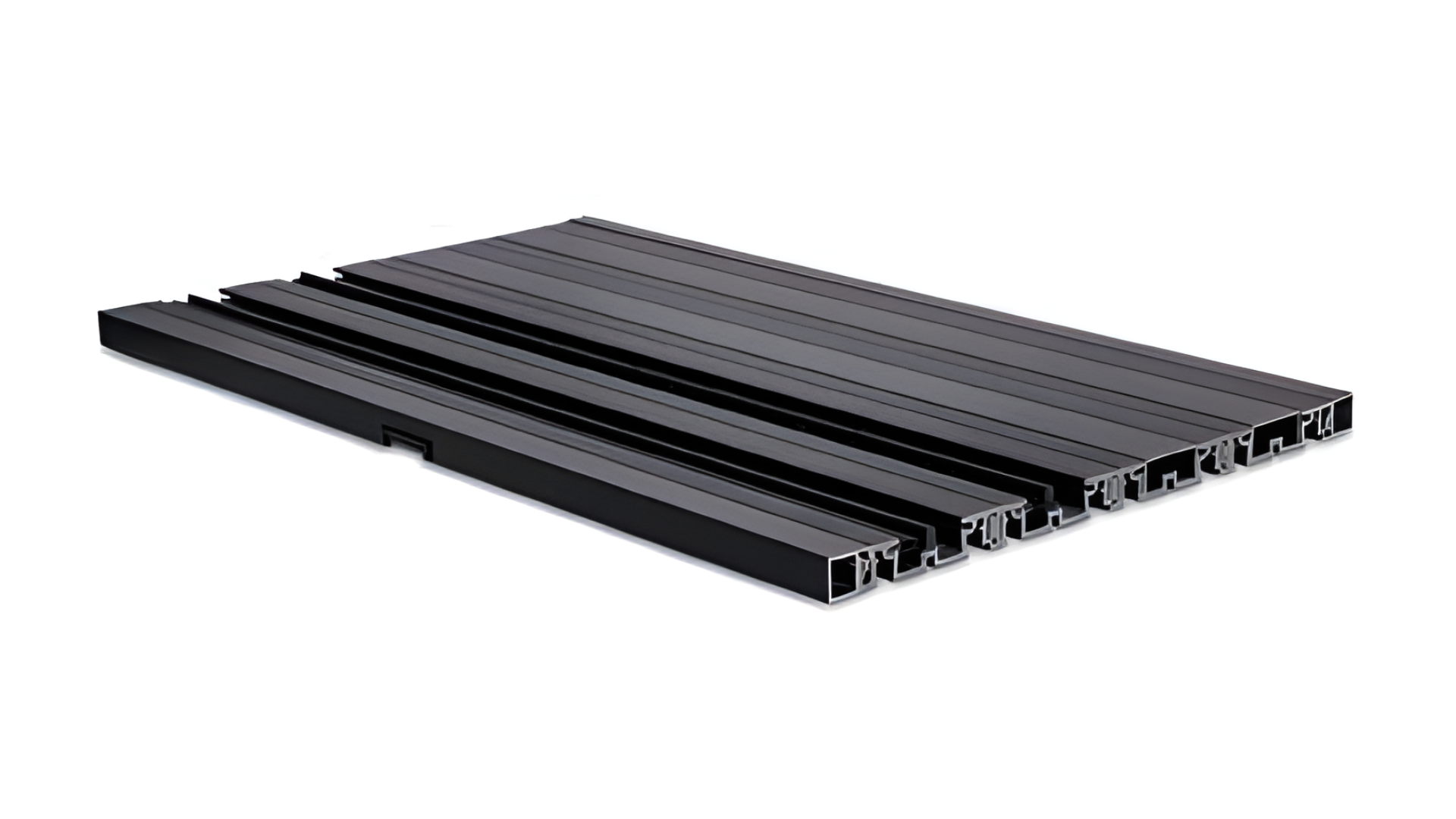

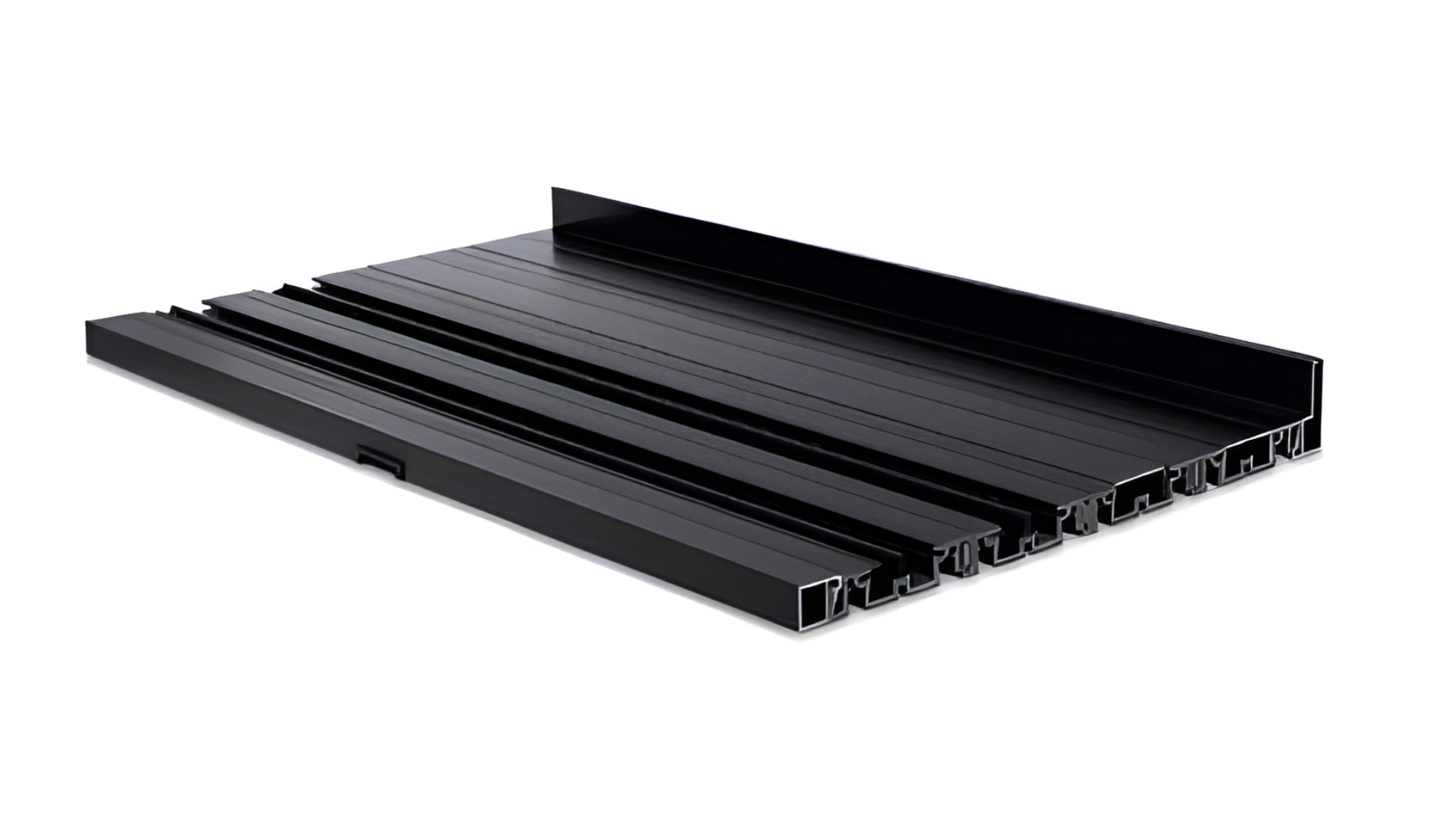

Waterproofing

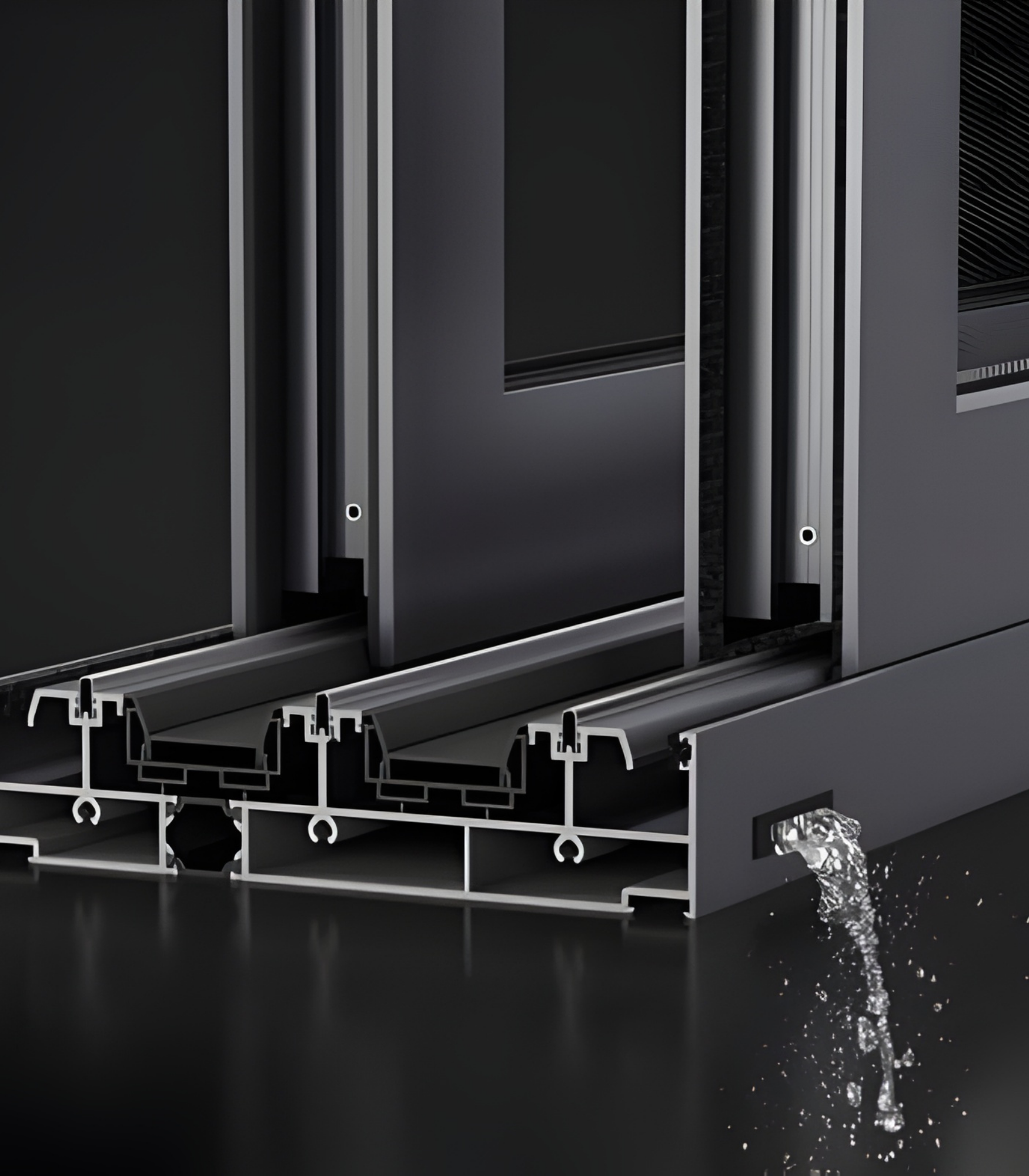

Sill design includes a dammed track with integrated drainage to the exterior. During installation, we bed the sill pan in sealant and verify positive slope before the frame goes in. Pinecrest’s afternoon thunderstorms and tropical downpours stay outside where they belong.

Wind Resistance

The VLX 150 is wind-load rated for local climate requirements, including the pressure cycling that comes with hurricane-season bands. Impact-resistant laminated glass is available for homes in wind-borne debris zones. We pull the permit, we meet the inspection, we hand you the certificate.

Security & Hardware

Stainless steel rollers, multi-point locking at the interlock, and optional auxiliary deadbolts. The hardware is rated for the door’s weight, which means smooth operation at year fifteen, not just year one. Cheap sliders get sticky; this one doesn’t.

Color & Glass Options

Pinecrest architecture runs from 1960s ranch to Mediterranean revival to contemporary flat-roof, and the VLX 150 finish lineup covers that spread without strain.

Premium Black and Pure White are the go-to choices for modern and transitional homes we’re seeing in new construction north of Pinecrest Parkway. Clean, sharp, no visual noise. Anodized Silver reads as technical and precise, suited to homes with steel or exposed concrete elements. Bronze and Champagne warm up traditional stucco and work with terracotta roof tiles without fighting them. Teak Wood grain finish gives you the look of hardwood without the maintenance liability in humid South Florida.

Glass selection depends on what problem you’re solving. Clear is your baseline for maximum light transmission. Low-E coatings reject infrared heat and are standard for any wall receiving direct afternoon sun. Tempered is code-required for doors in most applications and shatters safely if broken. Laminated adds the impact resistance for hurricane zones and acoustic damping for noisy locations. Gray Tint and Black Tint cut glare and solar gain for west-facing openings; we’ve specified black tint on multiple Pinecrest homes where the owner wanted the glass to read as void, not transparency.

Screen choice is operational preference. Sliding screens move with the panel and are always there when you want ventilation. Retractable screens roll away into a housing when not in use, giving you an unobstructed view and cleaner sightlines.

Installation by Sightline Windows & Doors Pinecrest in Pinecrest

We don’t subcontract your installation to a crew we’ve never met. Every VLX 150 that leaves our warehouse gets installed by Sightline Windows & Doors Pinecrest employees who’ve been trained on ViewLux’s specific requirements. Here’s what that looks like.

Pre-install inspection: we measure the rough opening twice, check for square and plumb in the framing, and identify any structural issues before the door arrives. In Pinecrest, we regularly find settled slab conditions in homes built before 1980, or additions where the header wasn’t sized for the span. We catch it early and fix it before the door goes in.

Setting the frame: level, plumb, square, and fastened to the structural opening per AAMA 2400/2410. Shims are placed at structural points, not wherever is convenient. The frame gets checked with a laser level and a long spirit level; we don’t eyeball it.

Perimeter seal: AAMA 812 low-expansion foam sealant fills the gap between frame and rough opening. This is not the canned foam from the hardware store. The right foam expands to fill without distorting the frame, and it stays flexible as the structure moves through seasonal humidity changes. Pinecrest’s wet season and dry season create real movement in wood-framed walls; the sealant has to accommodate that.

Hardware adjustment and water test: every roller is weight-adjusted, every lock is cycle-tested, and we spray the exterior with a calibrated water stream to verify drainage path and seal integrity. If water finds a path, we find it before you do.

Cleanup and walkthrough: we leave the site clean and walk you through the operation, maintenance, and warranty documentation.

Here’s the critical point: improper installation voids the manufacturer warranty. ViewLux requires authorized installation partners for a reason. When you buy through Sightline Windows & Doors Pinecrest, your warranty is intact, your permit is closed, and your inspection is passed. We’ve seen too many Pinecrest homeowners discover too late that their “great deal” on a premium door came with an installation that disqualified them from coverage.

Frequently Asked Questions - VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door?

Lead time typically runs 6 to 10 weeks from signed approval and deposit, depending on glass selection and finish availability. Custom sizes and impact-rated laminated configurations tend toward the longer end. Call (786) 442-3200 to check current production schedules for your specific configuration.

Does the VLX 150 qualify for energy tax credits?

The Low-E glass configuration with NFRC-certified performance may qualify for federal energy efficiency credits depending on the tax year and your specific installation details. We provide the certified performance documentation you need to claim any available credit. For current eligibility, consult your tax preparer with the NFRC ratings we’ll supply at estimate.

What warranty comes with the Heavy-Duty Sliding Door?

ViewLux provides a limited lifetime warranty on the frame and hardware, with glass coverage for 20 years against seal failure, when installed by an authorized partner like Sightline Windows & Doors Pinecrest. The warranty requires AAMA-standard installation and is not transferable to subsequent homeowners in all cases. We’ll review the full terms with you before you sign.

Can I customize the size?

Yes, within the 24-foot maximum span. Height and width are fabricated to your rough opening dimensions in increments down to the eighth-inch. We measure, the factory cuts, and the door fits without field modification. Call (786) 442-3200 to schedule the measurement that starts your custom order.

How do I maintain aluminum frames in Pinecrest’s climate?

Rinse the tracks with fresh water quarterly to remove salt and debris, lubricate the stainless rollers annually with a silicone-based product, and wash the frames with mild soap and water twice yearly. Avoid abrasive cleaners or pressure washers on the finish. The thermal break and anodized or powder-coated surfaces are designed for coastal exposure, but basic maintenance extends the service life significantly.

Get a Quote - VLX 150 Heavy-Duty Sliding Door in Pinecrest

Ready to see the VLX 150 in your Pinecrest home? We’ll bring sample finishes, glass swatches, and a measuring tape. There’s no charge for the on-site consultation, and you’ll get a written, line-item quote with no hidden costs or change-order surprises. Call (786) 442-3200 or stop by our Pinecrest showroom to start your project.

Written by the team at Sightline Windows & Doors Pinecrest, serving Pinecrest since 2008.
