VLX 500 Single & Double Hung Window

VLX 500 Single & Double Hung Window in Pinecrest, FL | Sightline Windows & Doors Pinecrest

The VLX 500 Single & Double Hung Window is a classic vertical-glide aluminum hung window built for homeowners who want clean sightlines, smooth operation, and tilt-in sashes that make cleaning simple. At Sightline Windows & Doors Pinecrest, we install this ViewLux series for Pinecrest properties ranging from mid-century ranch homes to new construction in neighborhoods like Snapper Creek and the Red Road corridor. As an authorized ViewLux installation partner, we don’t just sell windows - we measure, order, and install them to manufacturer spec so your warranty stays intact. If you’re comparing aluminum hung windows for a Pinecrest replacement or new build, call us at (786) 442-3200 to schedule a free on-site estimate.

Call (786) 442-3200

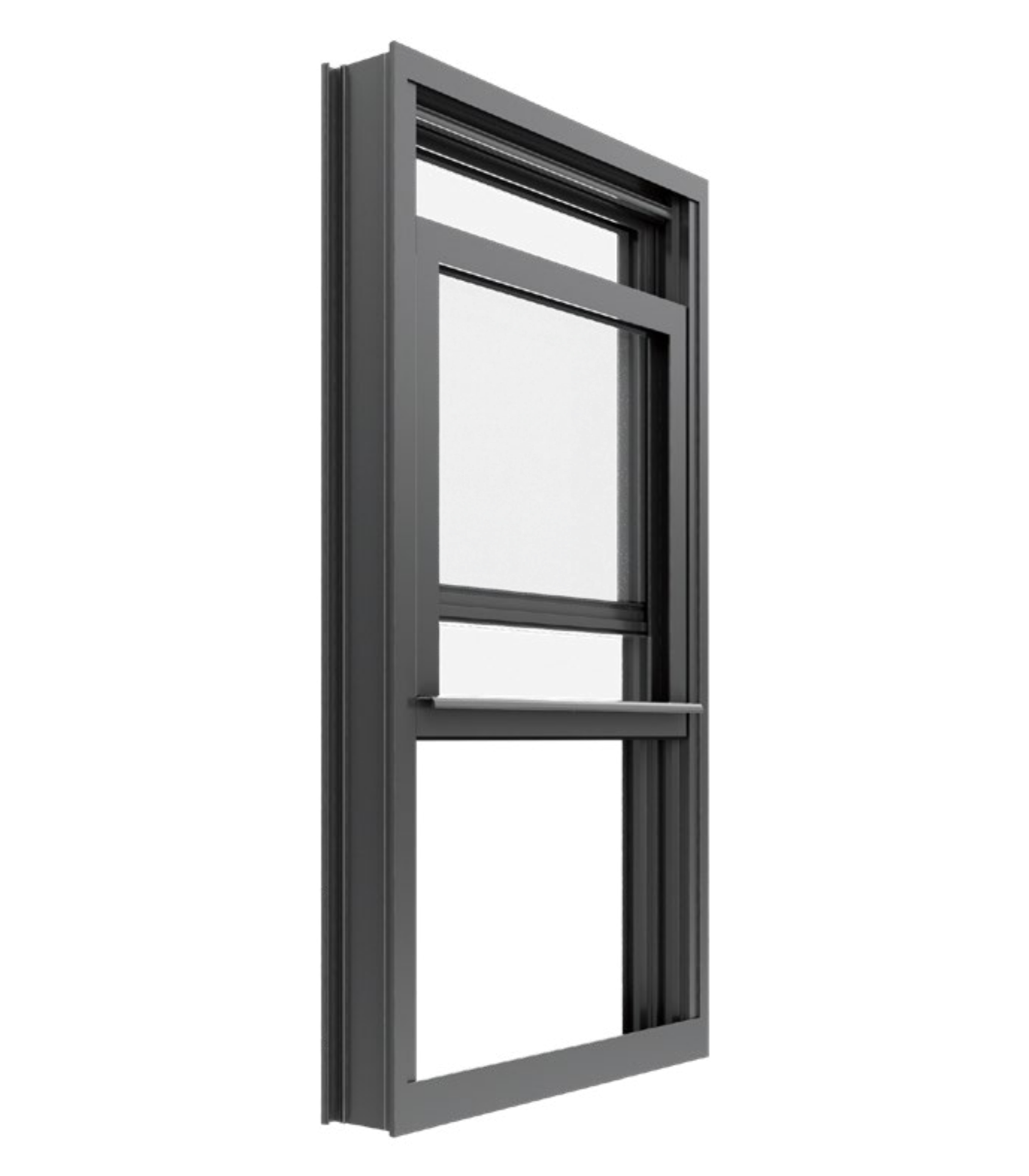

Product Overview - VLX 500 Single & Double Hung Window

The VLX 500 is built around a straightforward idea: a window should move easily, seal tightly, and stay out of the way of how you actually live. The aluminum frame uses a slim 2.36-inch profile width that preserves glass area and keeps sightlines clean - important in Pinecrest, where lot sizes and home values mean every design detail matters. The 0.079-inch wall thickness gives the frame rigidity without bulk, so sashes glide on their tracks year after year without the flexing or binding that cheaper systems develop.

Both sashes tilt inward for cleaning. That’s not a minor convenience in Pinecrest - it’s the difference between hiring a crew twice a year and handling second-story glass yourself from inside the house. The single hung version fixes the top sash and moves the bottom; the double hung lets both sashes operate. Most of our Pinecrest customers choose double hung for bedrooms and common areas where top-down ventilation matters, and single hung for utility spaces or where budget drives the decision.

Architecturally, the VLX 500 fits where you want a traditional divided-lite look or a single large pane. The frame accepts grids and muntins if your home’s style calls for them, or stays minimal for contemporary projects we’ve done near Pinecrest Gardens and along Ludlam Drive. The aluminum construction resists the humidity and salt air that degrades wood and vinyl faster than most homeowners expect.

Technical Specifications

• Frame Construction: Aluminum alloy with 0.079-inch wall thickness and 2.36-inch profile width - slim sightlines with structural integrity
• Operation: Vertical glide single or double hung; both sashes tilt inward for cleaning access
• Glass Options: Clear standard; Frosted for privacy; Low-E for solar heat control; Tempered for safety-critical locations; Laminated for impact resistance and sound dampening
• Finish Colors: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood - powder-coated or anodized for UV stability
• Screen Options: Half-Screen (bottom sash only) or Full Screen (complete opening coverage)
• Thermal Performance: Thermal break technology with NFRC-rated energy performance data
• Installation Standard: AAMA 2400/2410 compliant; AAMA 812 low-expansion foam sealant at all perimeter joints
• Performance Ratings: Tested for airtightness, waterproofing, mist prevention, and sound control
• Wind Load: Rated for local climate requirements including hurricane-zone pressures

Before

After

Performance Features

Thermal Efficiency

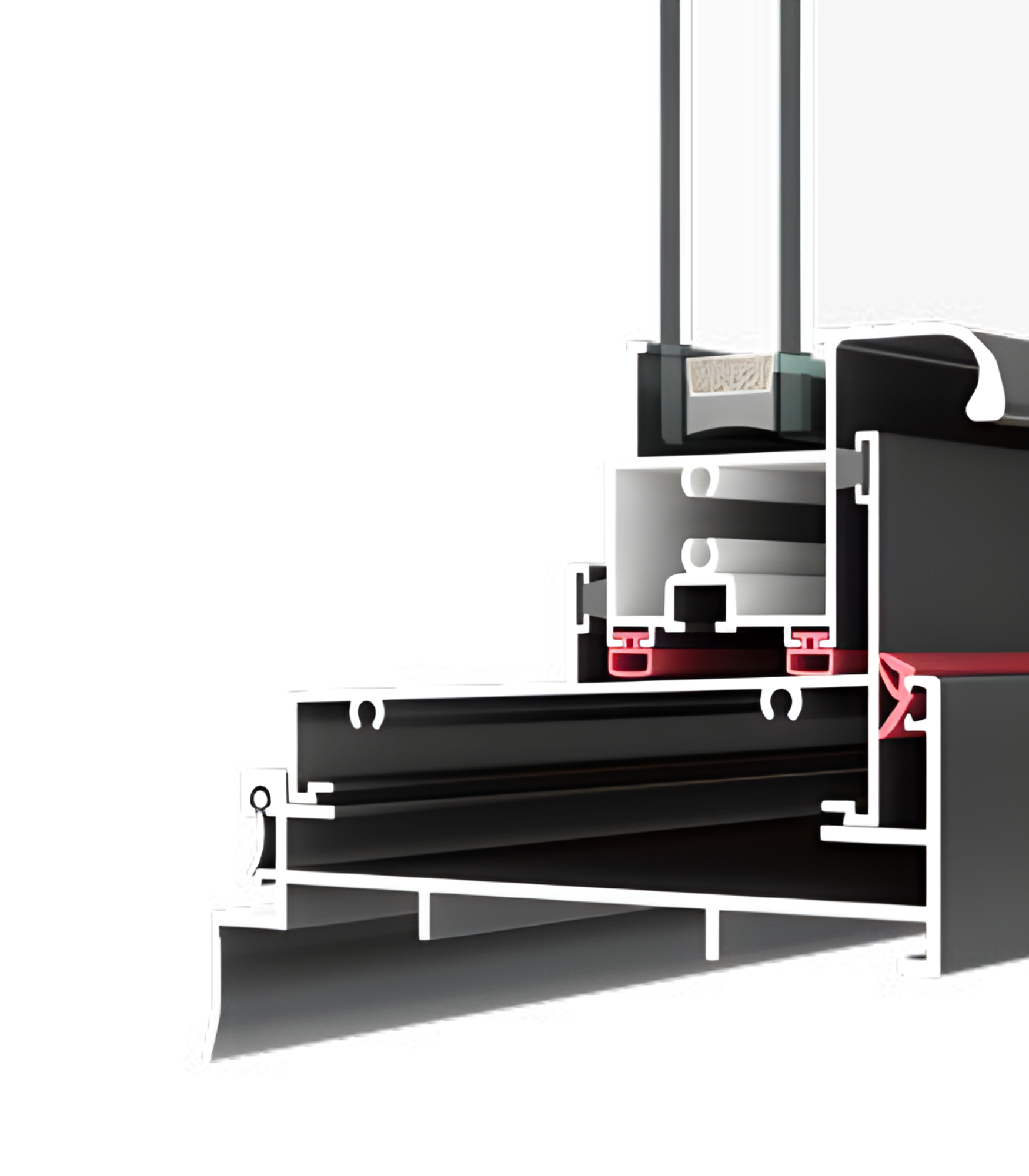

The VLX 500 uses thermal break technology - a polyamide barrier between interior and exterior aluminum extrusions that interrupts heat transfer. This isn’t standard on all aluminum windows, and it’s why the VLX 500 carries NFRC-rated energy performance numbers rather than vague claims. In Pinecrest, where summer cooling loads dominate utility bills, that thermal break keeps conditioned air inside where you pay for it.

Acoustic Performance

Laminated glass and proper frame sealing work together to reduce exterior noise. The VLX 500’s acoustic ratings matter on busier Pinecrest corridors like US-1 or South Dixie Highway, and for homes near Palmetto Expressway traffic. We’ve had customers in eastern Pinecrest report noticeable differences after upgrading from single-pane originals.

Airtightness & Weather Seal

Multiple compression seals and interlocking sash components limit air infiltration. The AAMA 2400/2410 installation standard we follow specifies seal placement and compression values that factory testing alone can’t guarantee - the window and the installation together determine what you actually feel sitting by the glass on a windy January morning in Pinecrest.

Waterproofing

Sloped sills, weep channels, and internal drainage paths move water out before it reaches your walls. We supplement this with AAMA 812 low-expansion foam sealant on all perimeter joints during installation, creating a secondary barrier. Pinecrest’s summer storms and hurricane-season wind-driven rain test this system seriously; we warranty our installation because we’ve seen it pass that test.

Wind Resistance

The VLX 500 frame and laminated glass option are wind-load rated for local climate requirements, including the pressure cycles and missile-impact standards relevant to South Florida. For Pinecrest homes in flood zones or exposed elevations, this isn’t optional - it’s code. We verify ratings against your specific site conditions during our pre-install inspection.

Security & Hardware

Multi-point locking hardware engages at several points along the sash, not just one center catch. The laminated glass option adds shatter resistance that slows forced entry. For ground-floor Pinecrest installations or rear-facing windows obscured by landscaping, this matters more than most homeowners initially consider.

Color & Glass Options

Finishes

Premium Black has become our most requested finish for Pinecrest’s newer construction and renovated mid-century homes - it reads as intentional and modern without trying too hard. Pure White remains the safe choice for traditional Florida architecture and HOA-governed communities. Anodized Silver suits industrial-contemporary projects; the finish is integral to the aluminum, so scratches don’t expose a different color underneath. Bronze and Champagne warm up facades that read too cool, which we’ve used effectively on stucco exteriors near Coral Gables-adjacent Pinecrest properties. Teak Wood mimics grain convincingly enough that neighbors have asked if it’s actual wood - it’s not, and it won’t rot.

Glass Selections

Clear glass works where view and light transmission matter most. Frosted glass solves privacy for bathrooms facing streets or neighboring lots, common in Pinecrest’s tighter original subdivisions. Low-E coating reflects infrared heat while passing visible light - we recommend it on west and south exposures where afternoon sun bakes rooms. Tempered glass is code-required for large units, doors, and windows near floors; it breaks into small granules rather than shards. Laminated glass combines impact resistance with sound control; for Pinecrest homes needing hurricane protection without shutters, this is the practical path.

Screen Choices

Half-Screen covers the operable sash only, preserving view through the fixed portion. Full Screen spans the entire opening, necessary if you operate both sashes regularly for ventilation.

Installation by Sightline Windows & Doors Pinecrest in Pinecrest

Window performance lives or dies at installation. We’ve replaced too many Pinecrest windows that failed early because the original installer skipped steps, used the wrong sealant, or didn’t account for how the house had settled. Sightline Windows & Doors Pinecrest installs every VLX 500 to preserve your ViewLux manufacturer warranty - and we warranty our own work on top of that.

Our process starts with a pre-install inspection. We measure each opening three times, check for square and level, and note structural issues like rotted wood or compromised stucco that need addressing first. Pinecrest’s mix of 1950s-1970s original construction and recent teardown rebuilds means we see everything from perfectly preserved block walls to additions that shifted during curing.

We set frames plumb, level, and square - not close enough, actually right. Shims go where engineering dictates, not where it’s convenient. We use AAMA 812 low-expansion foam sealant on all perimeter joints, the specified product for this application, not generic gap filler that cures too hard and distorts frames or too soft and lets air through. Our crews follow AAMA 2400/2410 installation standards for attachment, flashing integration, and sealant sequencing.

After installation, we run a water test - simulated rainfall sprayed at pressure against the frame and sash seals. We check operation, lock engagement, and screen fit. Then we clean up. Your Pinecrest home shouldn’t look like a construction zone when we leave.

Improper installation voids the manufacturer warranty. That’s stated plainly in ViewLux documentation, and it’s true of every window brand we work with. The “savings” from a cut-rate installer disappear fast when you’re paying out of pocket for a failed unit the manufacturer won’t cover.

Frequently Asked Questions - VLX 500 Single & Double Hung Window

What is the lead time for the VLX 500 Single & Double Hung Window?

Lead time typically runs 4-6 weeks from final measurement and deposit, depending on glass and finish selection. Laminated glass and custom sizes can extend this. Call (786) 442-3200 for current availability - we’ll check ViewLux production schedules and coordinate with your project timeline.

Does the VLX 500 qualify for energy tax credits?

The VLX 500 with Low-E glass and thermal break construction meets the NFRC performance requirements for federal energy efficiency tax credits when installed in a primary residence. We provide the certified product labels and installation documentation you’ll need to claim credits. Check with your tax preparer for current-year limits and eligibility.

What warranty comes with the Single & Double Hung Window?

ViewLux backs the VLX 500 with a limited lifetime warranty on the frame and sash, with glass coverage varying by option selected. Sightline Windows & Doors Pinecrest adds our own 10-year installation workmanship warranty. Both require professional installation by an authorized partner - which is exactly what we are in Pinecrest.

Can I customize the size?

Yes, the VLX 500 is available in standard sizes and made-to-order dimensions within engineering limits. We measure your openings precisely and specify custom units when stock sizes won’t fit or when you’re matching existing window grids in a partial replacement. Call (786) 442-3200 to schedule measurement - estimates are free.

How do I maintain aluminum frames?

Wash frames with mild soap and water twice yearly; avoid abrasive cleaners that damage the finish. Lubricate locks and balances annually with silicone spray. The tilt-in sashes make glass cleaning straightforward from inside. If operation becomes stiff or you notice seal degradation, call us - we service what we install throughout Pinecrest.

Get a Quote - VLX 500 Single & Double Hung Window in Pinecrest

Ready to see the VLX 500 in your Pinecrest home? We’ll bring samples, measure your openings, and prepare a written line-item quote with no obligation. Every project starts with a conversation about what you’re trying to solve - noise, efficiency, hurricane protection, or simply windows that actually open and close. Call (786) 442-3200 or stop by to schedule your free on-site estimate with Sightline Windows & Doors Pinecrest.

Written by the team at Sightline Windows & Doors Pinecrest, serving Pinecrest, FL as an authorized ViewLux installation partner.
