VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Pinecrest, FL | Sightline Windows & Doors Pinecrest

The VLX 100 Swing / Entry Door is a modern aluminum single entry door built around a minimalist frame and multi-point locking system. Homeowners in Pinecrest choose this ViewLux series when they want clean sightlines, smooth operation, and hardware that holds up to South Florida’s demanding climate. At Sightline Windows & Doors Pinecrest, we’re an authorized ViewLux installation partner, which means your door arrives factory-specified and we install it to preserve every term of the manufacturer’s warranty. We’ve fitted VLX 100 doors in homes from Pinecrest Estates to the streets near Pinecrest Gardens, and we know how this system performs when the afternoon storms roll through. Whether you’re replacing a tired entry door or specifying one for new construction, we’ll measure, quote, and install it right. Call us at (786) 442-3200 to schedule your free on-site consultation.

Call (786) 442-3200

Product Overview - VLX 100 Swing / Entry Door

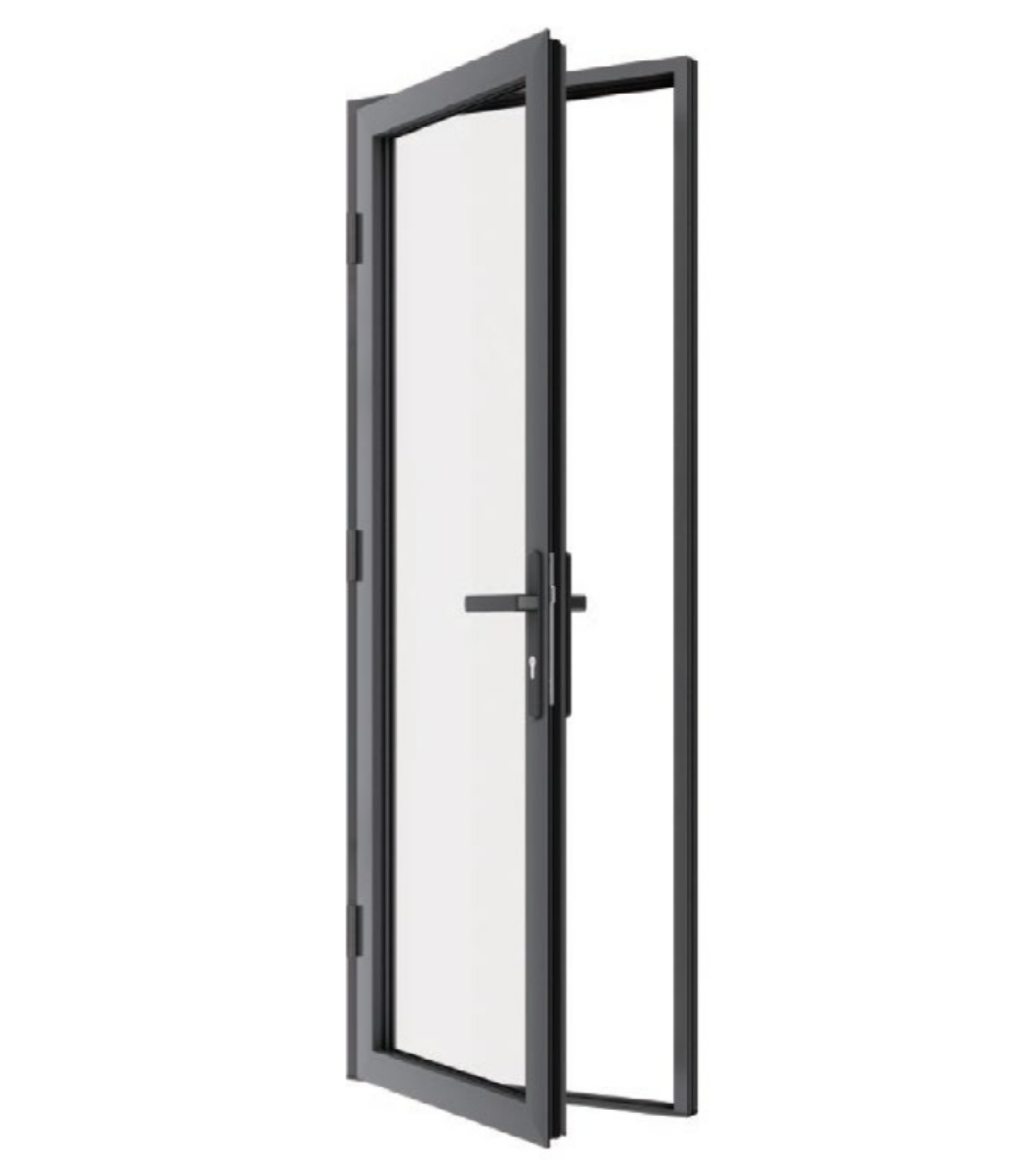

The VLX 100 Swing / Entry Door answers a specific request we hear constantly in Pinecrest: an entry door that looks contemporary without trying too hard. The design strips away bulky trim and exposed fasteners. What remains is a slim aluminum frame, a single active panel, and a multi-point locking mechanism that secures the door at several points along the jamb rather than relying on one deadbolt.

Architecturally, this door sits comfortably in transitional and modern homes throughout Pinecrest. We’ve installed it in ranch-style renovations where the owner wanted to signal a fresh direction, and in new builds near Red Road where clean geometry matters. The aluminum construction resists the humidity and salt air that degrades steel and warps wood over time. Unlike vinyl, aluminum holds crisp edges and won’t expand or contract dramatically between our wet summers and dry winters.

Buyers choose the VLX 100 for three practical reasons. First, the slim 2.56-inch profile width maximizes glass area without sacrificing structural integrity. Second, the multi-point lock creates even compression against the weatherstrip, which matters for both security and energy performance. Third, the system is modular enough to accommodate custom heights and widths up to 48 inches, so it fits openings that off-the-shelf doors simply won’t. Sightline Windows & Doors Pinecrest sizes every opening before we order, because a door this precise demands an opening that’s equally exact.

Technical Specifications

The 0.098-inch wall thickness gives the frame rigidity without excess weight. At 2.56 inches, the profile is noticeably slimmer than conventional entry door frames, which often run 3.5 inches or more. That matters in Pinecrest homes where natural light and sightlines to landscaped entry courtyards are part of the design intent. The 48-inch maximum width covers most single-entry applications; for wider openings, we can discuss paired configurations or fixed sidelites during your consultation.

Before

After

Performance Features

Thermal Efficiency
The VLX 100 uses thermal break technology to separate interior and exterior aluminum surfaces, interrupting heat transfer. This NFRC-rated assembly reduces the thermal bridging that makes older aluminum doors uncomfortable to touch in summer. In Pinecrest, where cooling costs dominate utility bills, that break translates to measurable load reduction on your HVAC system.

Acoustic Performance
The combination of insulated glass, multi-point compression, and perimeter foam sealant dampens exterior noise. Homes near US-1 or busier stretches of Pinecrest Parkway benefit noticeably. We specify glass thickness and air space based on your specific noise environment, not a generic formula.

Airtightness & Weather Seal
Multi-point locking pulls the door panel uniformly against dual weatherstrip gaskets. The result is consistent compression from top to bottom, eliminating the drafts that slip past single-point locks. AAMA testing protocols verify this performance under repeated cycling.

Waterproofing
AAMA 812 low-expansion foam sealant fills every perimeter joint between frame and rough opening. Unlike standard caulk, this foam maintains flexibility and creates a true air-and-water barrier. We apply it as part of our standard installation in Pinecrest, where wind-driven rain tests every opening during summer storms.

Wind Resistance
The VLX 100 frame and laminated glass option are wind-load rated for South Florida requirements. The system has passed structural testing for the pressures that accompany our tropical weather. For Pinecrest homes in specific wind zones, we verify that your specification meets or exceeds the local design pressure for your address.

Security & Hardware

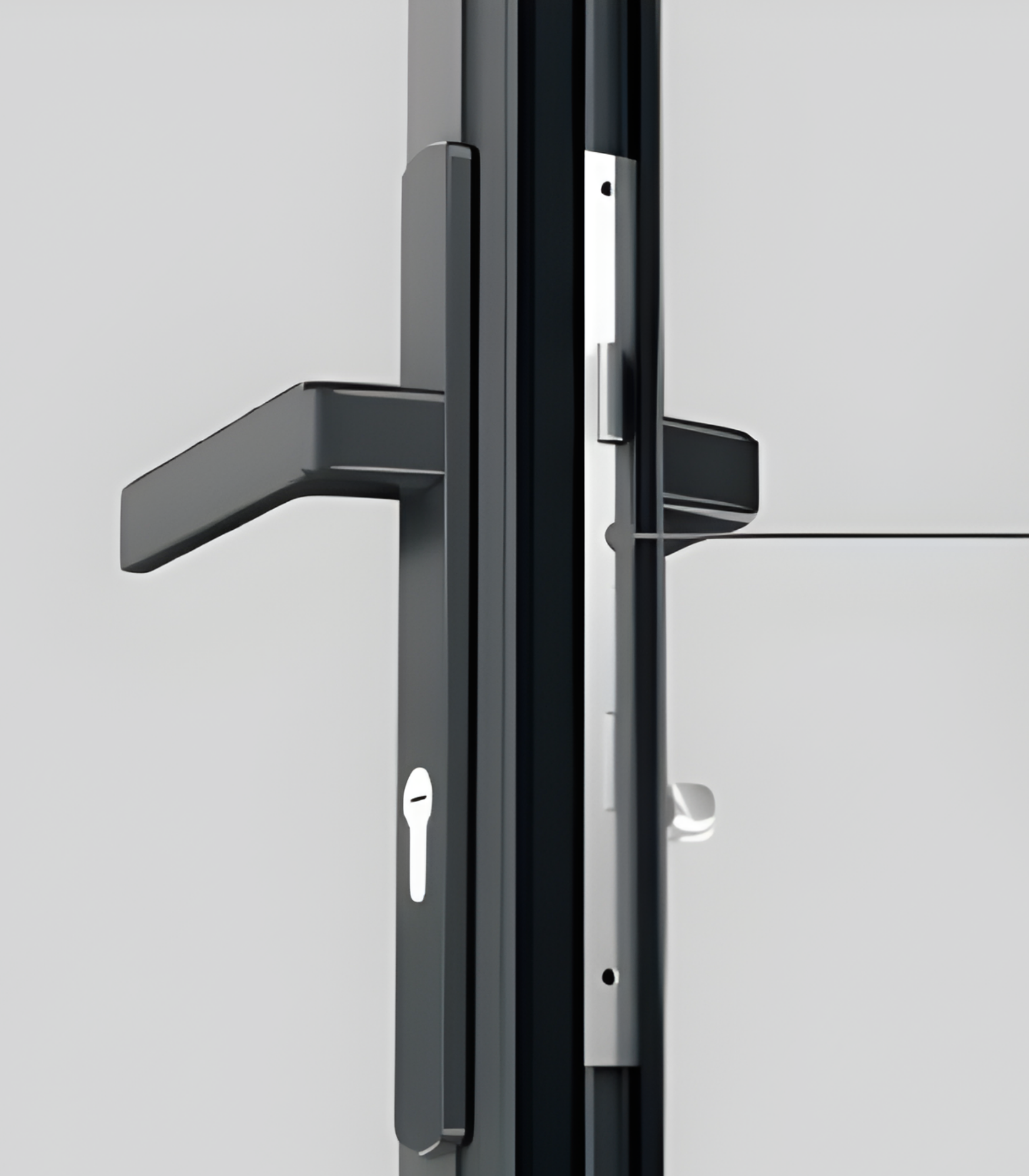

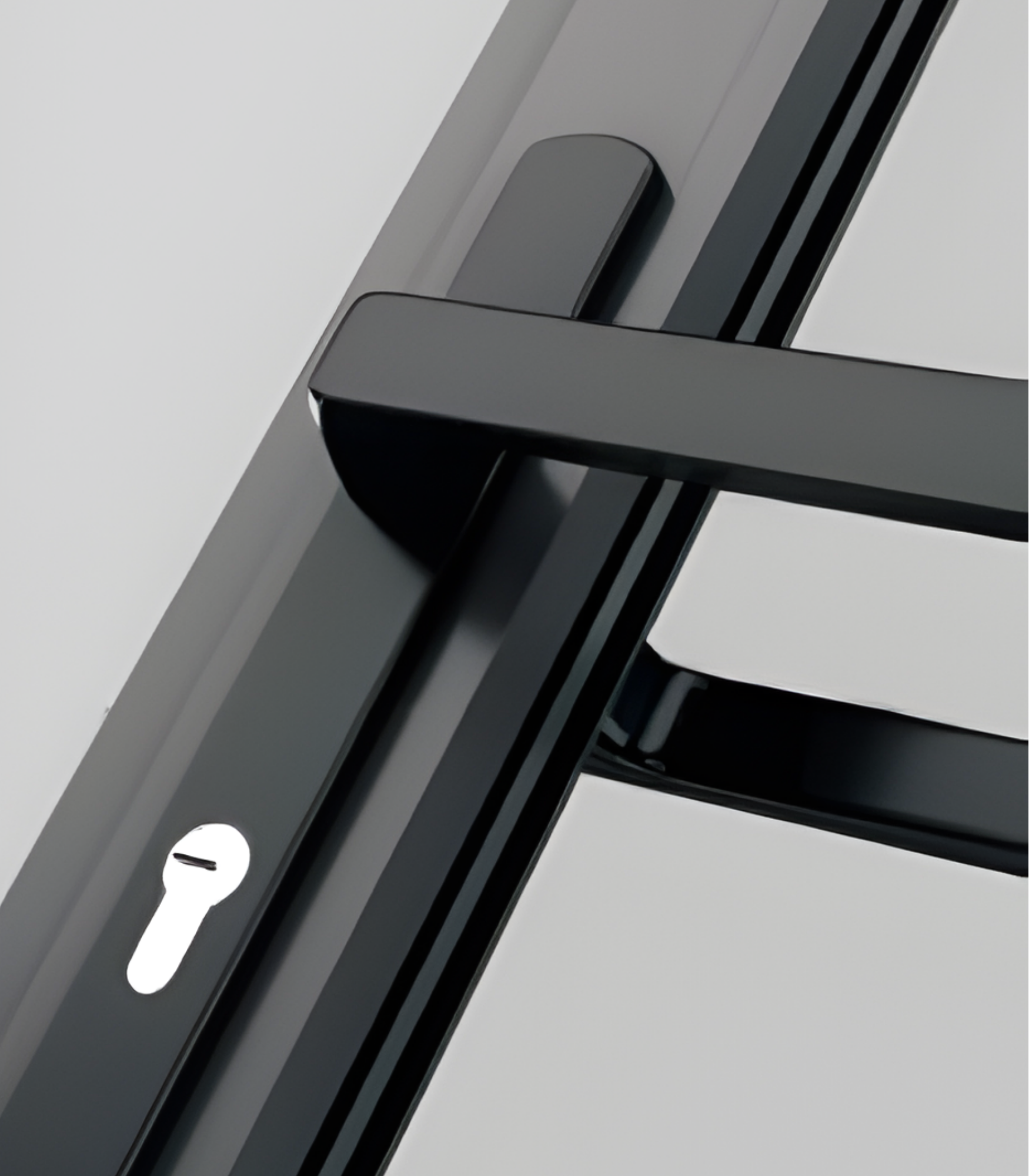

Multi-point locking engages at the deadbolt, a mid-point hook, and a lower bolt. A single turn of the handle or key secures all three simultaneously. The hardware is integrated into the frame, not surface-mounted, so there’s nothing to pry or twist. We install strike plates reinforced into the jamb, not just the trim.

Color & Glass Options

Six finishes and six glass types let us match the VLX 100 to your home’s architecture and your daily needs.

Premium Black and Anodized Silver dominate our Pinecrest installations for modern and transitional homes. Black reads as deliberate and architectural; anodized silver complements the metal roof accents and window frames common in contemporary local builds. Pure White works well for coastal cottage renovations and any home where you want the door to recede visually.

Bronze and Champagne suit traditional Pinecrest estates where warmth matters. Bronze pairs with coral stone and terracotta roof tile. Champagne is subtler, a soft metallic that catches morning light without glare. Teak Wood finish gives you the grain pattern and warmth of wood with aluminum’s durability, a popular choice where HOA guidelines or personal preference call for natural tones.

Glass selection depends on privacy, energy, and safety priorities. Clear maximizes light and views. Frosted and Obscure provide privacy for entries facing streets or neighboring windows. Low-E coating reflects infrared heat, our standard recommendation for west-facing doors in Pinecrest. Tempered glass meets safety code for human impact and breaks into small granules rather than shards. Laminated glass adds a polyvinyl interlayer for impact resistance, security, and sound dampening. We often specify laminated Low-E for Pinecrest homes that want maximum performance in a single package.

Screen options include a retractable screen that stores in the frame when not in use, or no screen for purely aesthetic entries where ventilation through the door itself isn’t required.

Installation by Sightline Windows & Doors Pinecrest in Pinecrest

We’ve seen too many premium doors underperform because of sloppy installation. The VLX 100 is engineered to tight tolerances, and that precision is wasted if the frame isn’t set level, plumb, and square. Sightline Windows & Doors Pinecrest installs every ViewLux door to AAMA 2400/2410 standards, the recognized benchmark for fenestration installation in residential construction.

Our process starts with a pre-install inspection of your rough opening. We check for squareness, structural integrity, and proper flashing integration with your home’s weather barrier. In Pinecrest, we often find that older homes need sill pan adjustment or header reinforcement before a modern door can perform as designed. We address this before the door arrives, not after.

Setting the frame, we use shims and structural screws, not nails that loosen with seasonal movement. We verify level, plumb, and square in three planes. Then we apply AAMA 812 low-expansion foam sealant to all perimeter joints, creating the air seal and water barrier that the performance ratings depend on. Without this step, wind-driven rain finds its way behind the trim, and your energy performance drops immediately.

We complete every installation with a water test, operating the door through multiple cycles to confirm smooth function and lock engagement. We clean the site and walk you through the hardware operation and maintenance schedule.

Here’s what Pinecrest homeowners need to understand: ViewLux warranties the product, but they require professional installation by an authorized partner to honor that warranty. DIY or handyman installation voids coverage. South Florida’s building code also requires impact-rated or protected openings in designated wind-borne debris regions, and we verify that your specification complies for your specific Pinecrest address. Our permits are pulled, our inspections pass, and your documentation is clean for resale or insurance purposes.

Frequently Asked Questions - VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door?
Lead time typically runs 4 to 6 weeks from final measurement and deposit, depending on finish and glass selection. Custom finishes or laminated impact glass may extend this slightly. We keep you updated weekly and coordinate installation the moment your door arrives in our Pinecrest warehouse. Call (786) 442-3200 to check current lead times and reserve your production slot.

Does the VLX 100 qualify for energy tax credits?
The Low-E glass configuration with thermal break assembly meets NFRC energy performance standards that may contribute to federal or state energy efficiency credits, depending on the tax year and your total project scope. We provide certified NFRC labels and product performance data for your tax preparer. Call (786) 442-3200 and we’ll confirm which configurations qualify under current programs.

What warranty comes with the Swing / Entry Door?
ViewLux provides a limited lifetime warranty on the aluminum frame and finish, with 10-year coverage on insulated glass seals and hardware. This warranty is valid only when installed by an authorized partner like Sightline Windows & Doors Pinecrest. We register your installation directly with ViewLux and provide you the certificate. Improper installation voids all coverage, which is why we don’t recommend cutting corners on the install.

Can I customize the size?
Yes, the VLX 100 accommodates custom heights and widths up to 48 inches wide in single-panel configuration. For openings beyond this, we design paired doors or fixed sidelites using matching ViewLux profiles. We measure on-site in Pinecrest to ensure your custom size fits the actual opening, not the nominal dimension on your plans. Call (786) 442-3200 to schedule a free measurement.

How do I maintain aluminum frames?
Wash the frame twice yearly with mild soap and water, rinse with a hose, and dry with a soft cloth. Avoid abrasive cleaners or solvents that damage the finish. Lubricate the multi-point lock and hinges annually with a silicone-based product. Inspect the weatherstrip for compression set after major storms. The aluminum won’t rot, warp, or need painting, which is why Pinecrest homeowners who’ve maintained wood doors often switch to this system.

Get a Quote - VLX 100 Swing / Entry Door in Pinecrest

Ready to see how the VLX 100 Swing / Entry Door looks on your Pinecrest home? We’ll bring finish samples, measure your opening precisely, and prepare a written line-item quote with no obligation. Every quote includes the door, glass, hardware, screen option, AAMA-standard installation, permit handling, and warranty registration. No change orders, no surprises. Call Sightline Windows & Doors Pinecrest at (786) 442-3200 or visit our showroom to get started.
